Compare Body Worn Camera Range
Our Body Worn
Camera Range

Our Body Worn Camera Range



  PR7 PR7 Mini PR7 Mini+ PR8
Pinnacle Body Worn Cameras PR7 PR7 Mini PR7 Mini+ PR8
Best Fit Rugged & Easy to use Compact & Lightweight Compact & Lightweight Advanced & Connected
Weight 165g 75g 75g 163g
Recording Time Up to 12 hrs Up to 8 hrs Up to 8 hrs Up to 10 hrs
One-Swipe/Press Instant Rec
 ✓ ✓ ✓ ✓
Pre-Record
 ✓ 30 sec standard ✓ 30 sec standard ✓ 30 sec standard ✓ 30 sec standard
Enhanced Low-Light Capture ✓ ✓ ✓ ✓
Water & Dust Rating IP66 IP65 IP65 IP67
Drop Tested 2m 1.8m 1.8m 1.8m
Direct Wi-Fi Upload
 ✓ ✓ ✓ ✓
4G Upload ✕ ✕ ✕ ✓
Live Streaming
 ✕ ✕ ✕ ✓
Push-to-Talk ✕ ✕ ✕ ✓
SOS ✕ ✕ ✕ ✓
Bluetooth ✓ ✓ ✓ ✓
GPS / Positioning ✓ ✕ ✕ ✓
AES-256 Encryption ✓ ✓ ✓ ✓
DEMS Compatible ✓ ✓ ✓ ✓
Record Start Stop Audio Alert ✕ ✕ ✓ ✓
Battery Standby 150+ hrs 100+ hrs 100+ hrs 150+ hrs
For detailed technical specifications of our range, click here
Physical & Power
  PR7 PR7 Mini PR7 Mini+ PR8
Pinnacle Body Worn Cameras PR7 PR7 Mini PR7 Mini+ PR8
Dimensions (H × W × D) 92 × 60 × 25mm 63 × 50 × 26mm* 63 × 50 × 23mm 84 × 56 × 27mm
Weight 165g 75g 75g 163g
IP Rating IP66 IP65 IP65 IP67
Memory Type Built-in Built-in Built-in Built-in
Memory Capacity 64GB To confirm 32GB 64GB
Battery Capacity 3000mAh To confirm 1900mAh 3200mAh
Continuous Recording Up to 12 hrs Up to 8 hrs Up to 8 hrs Up to 10 hrs
Standby 150+ hrs 100+ hrs 100+ hrs 150+ hrs
Charging Time 4 hrs 3 hrs 3 hrs 4 hrs
Drop Test 2m* 1.8m 1.8m 1.8m
Operating Temperature -30°C to +65°C To confirm -30°C to +65°C -30°C to +65°C
Interface USB-C To confirm USB-C USB-C
Camera & Recording
  PR7 PR7 Mini PR7 Mini+ PR8
Pinnacle Body Worn Cameras PR7 PR7 Mini PR7 Mini+ PR8
Status Screen N/A N/A N/A 2"
Screen Resolution N/A N/A N/A 320 × 240
Microphone Standard Standard Standard Dual
Low-Light Performance Ultra Low Light Enhanced Ultra Low Light Ultra Low Light
Field of View 140° 120° 120° 140°
Maximum Video Resolution 1440p@30fps 1080p@30fps* 1080p@60fps 1440p@30fps
Normal / Supplied Setting 1080p* Enhanced 720p* Enhanced 720p* Enhanced 720p*
Image Resolution Up to 40MP To confirm Up to 40MP Up to 40MP
Video File Format MP4 To confirm MP4 MP4
Photo File Format JPEG To confirm JPEG JPEG
Audio File Format AAC To confirm AAC AAC
Speaker ✕ To confirm ✓ ✓
Video Coding H.264 / H.265 H.264 / H.265 H.264 / H.265 H.264 / H.265
File Encryption AES-256 AES-256 AES-256 AES-256
Pre-Record
 30 sec standard / up to 120 sec 30 sec standard 30 sec standard / up to 120 sec 30 sec standard / up to 120 sec
Snapshot During Recording ✕ ✓ ✓ ✓
Connectivity & Advanced Features
  PR7 PR7 Mini PR7 Mini+ PR8
Pinnacle Body Worn Cameras PR7 PR7 Mini PR7 Mini+ PR8
Wi-Fi ✓ ✓ ✓ ✓
WLAN 2.4GHz & 5GHz To confirm 2.4GHz & 5GHz 2.4GHz & 5GHz
Direct Wi-Fi Upload
 ✓ ✓ ✓ ✓
Bluetooth ✓ ✓ ✓ ✓
GPS / Positioning ✓ ✕ ✕ ✓
4G Cellular ✕ ✕ ✕ ✓
4G Upload ✕ ✕ ✕ ✓
Live Streaming
 ✕ ✕ ✕ ✓
Push-to-Talk ✕ ✕ ✕ ✓
SOS ✕ ✕ ✕ ✓
One-Swipe/Press Instant Rec
 ✓ ✓ ✓ ✓
Remote Activation

 ✓ ✕ ✓ ✓
Charging, Mounting & Software
  PR7 PR7 Mini PR7 Mini+ PR8
Pinnacle Body Worn Cameras PR7 PR7 Mini PR7 Mini+ PR8
Multi-Unit Charging 10-way multi-dock ✓ 10-way multi-dock 10-way multi-dock
KlickFast Compatible Fixed / rotating police dock ✓* Stud available Fixed police dock
USB Multi-Unit Upload ✓ ✓ ✓ ✓
DEMS Compatible ✓ ✓ ✓ ✓
Secure Evidence Management ✓ ✓ ✓ ✓
  Buy Now Buy Now Buy Now Buy Now

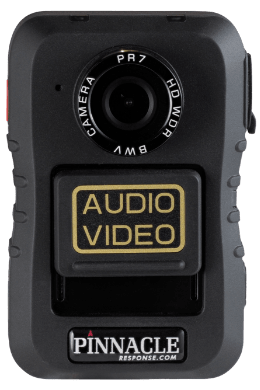

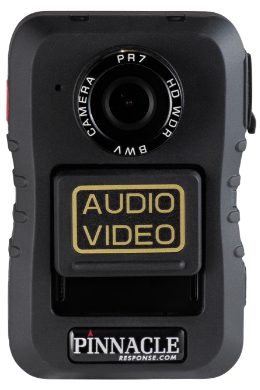

PR7
PR7
Best Fit Rugged & Easy to use
Weight 165g
Recording Time Up to 12 hrs
One-Swipe/Press Instant Rec
 ✓
Pre-Record
 ✓ 30 sec standard
Enhanced Low-Light Capture ✓
Water & Dust Rating IP66
Drop Tested 2m
Direct Wi-Fi Upload
 ✓
4G Upload ✕
Live Streaming
 ✕
Push-to-Talk ✕
SOS ✕
Bluetooth ✓
GPS / Positioning ✓
AES-256 Encryption ✓
DEMS Compatible ✓
Record Start Stop Audio Alert ✕
Battery Standby 150+ hrs
Buy Now
Technical Specifications
Physical & Power
Dimensions (H × W × D) 92 × 60 × 25mm
Weight 165g
IP Rating IP66
Memory Type Built-in
Memory Capacity 64GB
Battery Capacity 3000mAh
Continuous Recording Up to 12 hrs
Standby 150+ hrs
Charging Time 4 hrs
Drop Test 2m*
Operating Temperature -30°C to +65°C
Interface USB-C
Camera & Recording
Status Screen N/A
Screen Resolution N/A
Microphone Standard
Low-Light Performance Ultra Low Light
Field of View 140°
Maximum Video Resolution 1440p@30fps
Normal / Supplied Setting 1080p*
Image Resolution Up to 40MP
Video File Format MP4
Photo File Format JPEG
Audio File Format AAC
Speaker ✕
Video Coding H.264 / H.265
File Encryption AES-256
Pre-Record
 30 sec standard / up to 120 sec
Snapshot During Recording ✕
Connectivity & Advanced Features
Wi-Fi ✓
WLAN 2.4GHz & 5GHz
Direct Wi-Fi Upload
 ✓
Bluetooth ✓
GPS / Positioning ✓
4G Cellular ✕
4G Upload ✕
Live Streaming
 ✕
Push-to-Talk ✕
SOS ✕
One-Swipe/Press Instant Rec
 ✓
Remote Activation

 ✓
Charging, Mounting & Software
Multi-Unit Charging 10-way multi-dock
KlickFast Compatible Fixed / rotating police dock
USB Multi-Unit Upload ✓
DEMS Compatible ✓
Secure Evidence Management ✓

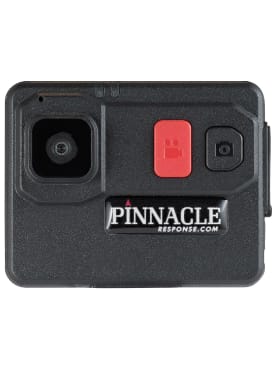

PR7 Mini
PR7 Mini
Best Fit Compact & Lightweight
Weight 75g
Recording Time Up to 8 hrs
One-Swipe/Press Instant Rec
 ✓
Pre-Record
 ✓ 30 sec standard
Enhanced Low-Light Capture ✓
Water & Dust Rating IP65
Drop Tested 1.8m
Direct Wi-Fi Upload
 ✓
4G Upload ✕
Live Streaming
 ✕
Push-to-Talk ✕
SOS ✕
Bluetooth ✓
GPS / Positioning ✕
AES-256 Encryption ✓
DEMS Compatible ✓
Record Start Stop Audio Alert ✕
Battery Standby 100+ hrs
Buy Now
Technical Specifications
Physical & Power
Dimensions (H × W × D) 63 × 50 × 26mm*
Weight 75g
IP Rating IP65
Memory Type Built-in
Memory Capacity To confirm
Battery Capacity To confirm
Continuous Recording Up to 8 hrs
Standby 100+ hrs
Charging Time 3 hrs
Drop Test 1.8m
Operating Temperature To confirm
Interface To confirm
Camera & Recording
Status Screen N/A
Screen Resolution N/A
Microphone Standard
Low-Light Performance Enhanced
Field of View 120°
Maximum Video Resolution 1080p@30fps*
Normal / Supplied Setting Enhanced 720p*
Image Resolution To confirm
Video File Format To confirm
Photo File Format To confirm
Audio File Format To confirm
Speaker To confirm
Video Coding H.264 / H.265
File Encryption AES-256
Pre-Record
 30 sec standard
Snapshot During Recording ✓
Connectivity & Advanced Features
Wi-Fi ✓
WLAN To confirm
Direct Wi-Fi Upload
 ✓
Bluetooth ✓
GPS / Positioning ✕
4G Cellular ✕
4G Upload ✕
Live Streaming
 ✕
Push-to-Talk ✕
SOS ✕
One-Swipe/Press Instant Rec
 ✓
Remote Activation

 ✕
Charging, Mounting & Software
Multi-Unit Charging ✓
KlickFast Compatible ✓*
USB Multi-Unit Upload ✓
DEMS Compatible ✓
Secure Evidence Management ✓

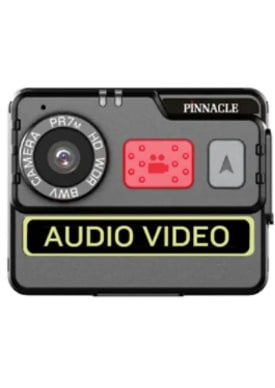

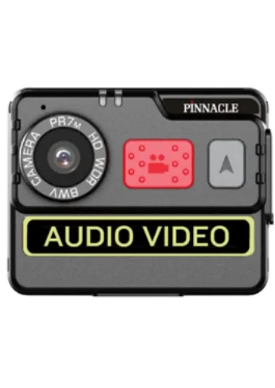

PR7 Mini+
PR7 Mini+
Best Fit Compact & Lightweight
Weight 75g
Recording Time Up to 8 hrs
One-Swipe/Press Instant Rec
 ✓
Pre-Record
 ✓ 30 sec standard
Enhanced Low-Light Capture ✓
Water & Dust Rating IP65
Drop Tested 1.8m
Direct Wi-Fi Upload
 ✓
4G Upload ✕
Live Streaming
 ✕
Push-to-Talk ✕
SOS ✕
Bluetooth ✓
GPS / Positioning ✕
AES-256 Encryption ✓
DEMS Compatible ✓
Record Start Stop Audio Alert ✓
Battery Standby 100+ hrs
Buy Now
Technical Specifications
Physical & Power
Dimensions (H × W × D) 63 × 50 × 23mm
Weight 75g
IP Rating IP65
Memory Type Built-in
Memory Capacity 32GB
Battery Capacity 1900mAh
Continuous Recording Up to 8 hrs
Standby 100+ hrs
Charging Time 3 hrs
Drop Test 1.8m
Operating Temperature -30°C to +65°C
Interface USB-C
Camera & Recording
Status Screen N/A
Screen Resolution N/A
Microphone Standard
Low-Light Performance Ultra Low Light
Field of View 120°
Maximum Video Resolution 1080p@60fps
Normal / Supplied Setting Enhanced 720p*
Image Resolution Up to 40MP
Video File Format MP4
Photo File Format JPEG
Audio File Format AAC
Speaker ✓
Video Coding H.264 / H.265
File Encryption AES-256
Pre-Record
 30 sec standard / up to 120 sec
Snapshot During Recording ✓
Connectivity & Advanced Features
Wi-Fi ✓
WLAN 2.4GHz & 5GHz
Direct Wi-Fi Upload
 ✓
Bluetooth ✓
GPS / Positioning ✕
4G Cellular ✕
4G Upload ✕
Live Streaming
 ✕
Push-to-Talk ✕
SOS ✕
One-Swipe/Press Instant Rec
 ✓
Remote Activation

 ✓
Charging, Mounting & Software
Multi-Unit Charging 10-way multi-dock
KlickFast Compatible Stud available
USB Multi-Unit Upload ✓
DEMS Compatible ✓
Secure Evidence Management ✓

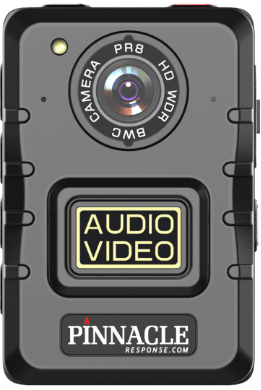

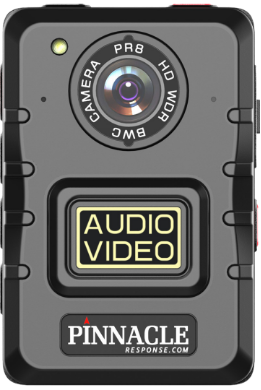

PR8
PR8
Best Fit Advanced & Connected
Weight 163g
Recording Time Up to 10 hrs
One-Swipe/Press Instant Rec
 ✓
Pre-Record
 ✓ 30 sec standard
Enhanced Low-Light Capture ✓
Water & Dust Rating IP67
Drop Tested 1.8m
Direct Wi-Fi Upload
 ✓
4G Upload ✓
Live Streaming
 ✓
Push-to-Talk ✓
SOS ✓
Bluetooth ✓
GPS / Positioning ✓
AES-256 Encryption ✓
DEMS Compatible ✓
Record Start Stop Audio Alert ✓
Battery Standby 150+ hrs
Buy Now
Technical Specifications
Physical & Power
Dimensions (H × W × D) 84 × 56 × 27mm
Weight 163g
IP Rating IP67
Memory Type Built-in
Memory Capacity 64GB
Battery Capacity 3200mAh
Continuous Recording Up to 10 hrs
Standby 150+ hrs
Charging Time 4 hrs
Drop Test 1.8m
Operating Temperature -30°C to +65°C
Interface USB-C
Camera & Recording
Status Screen 2"
Screen Resolution 320 × 240
Microphone Dual
Low-Light Performance Ultra Low Light
Field of View 140°
Maximum Video Resolution 1440p@30fps
Normal / Supplied Setting Enhanced 720p*
Image Resolution Up to 40MP
Video File Format MP4
Photo File Format JPEG
Audio File Format AAC
Speaker ✓
Video Coding H.264 / H.265
File Encryption AES-256
Pre-Record
 30 sec standard / up to 120 sec
Snapshot During Recording ✓
Connectivity & Advanced Features
Wi-Fi ✓
WLAN 2.4GHz & 5GHz
Direct Wi-Fi Upload
 ✓
Bluetooth ✓
GPS / Positioning ✓
4G Cellular ✓
4G Upload ✓
Live Streaming
 ✓
Push-to-Talk ✓
SOS ✓
One-Swipe/Press Instant Rec
 ✓
Remote Activation

 ✓
Charging, Mounting & Software
Multi-Unit Charging 10-way multi-dock
KlickFast Compatible Fixed police dock
USB Multi-Unit Upload ✓
DEMS Compatible ✓
Secure Evidence Management ✓
